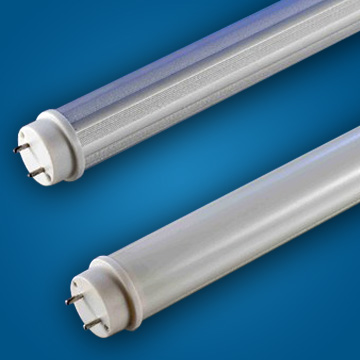

T8 LED Light Tube

Home > Product > LED Tube Light > T8 LED Tube Light >
  • Name: T8218C T8 LED Tube Light
  • Power: 18W
  • Input Voltage (AC): 85-265V / 50-60Hz
  • Lumens: 1440-1620lm
  • Color Temperature: 2700K-7000K
  • Beam angle: 120°
  • Dimensions: 1200MM
  • LED quantity: 288SMD
  • Lifespan: > 50,000 Hours

Specification

T8 LED Tube Light
Model No. T8209C T8212C T8218C T8221C
Power 9w 12w 18w 21w
Color Warm/Pure/Cool white Warm/Pure/Cool white Warm/Pure/Cool white Warm/Pure/Cool white
Luminous flux 800lm 1050lm 1900lm 2200lm
Ra Ra>75% Ra>75% Ra>75% Ra>75%
Color Temperature 2700-6500K 2700-6500K 2700-6500K 2700-6500K
Beam Angle 120° 120° 120° 120°
LED chip quantity SMD2835/55pcs SMD2835/60pcs SMD2835/108pcs SMD2835/144pcs
Light Efficiency 80-90lm/w 80-90lm/w 80-90lm/w 80-90lm/w
Lamp cap Plastic Plastic Plastic Plastic
Size 600mm 900mm 1200mm 1500mm
Input Voltage AC85-265V AC85-265V AC85-265V AC85-265V

T8 LED light tube external power supply series is better than the built-in power led lamp products on heat dissipation. The separation between the lamp and power makes it facilitate to the right replacement and the light-emitting area can be increased by 2 / 3. The light emitting angles are also increased to 220 degree. It uses a utility model patent with a heat reflecting surface profiles which help to make an ideal light projection and extend working life.

T8 LED light tube external power supply EH Series characteristics include high quality, good durability and is energy saving. A 15W T8 LED light tube is as bright as a 40w traditional light tube. T8 LED light tube has good performance due to the features of high temperature resistance and is waterproof. The optional voltage range is 110V, 220V. Both glass and PC materials can be used for its outer cover.

T8 LED light tube can be form an array light sources, which can fully ensure the flux in the structural design to ensure the maximum lighting projection. It can also eliminate visual fatigue and viewing interference caused by glare in common LED lights. What's more the drive current in each LED is limited in the optimum range of operating current within the chip to ensure long lifespan of the T8 LED light tube.

If you're interested in our products or have any questions about it, please let us know. Don't hesitate to contact us!

Knowledge

How to Make LED Tube Light

Making your own LED light tube can be a cost effective solution of lighting the home and you can do it yourself with the right tools and instruction. So, how to make your LED tube light? You need an understanding of electronics to successfully build your own LED tube. You can use an LED tube to replace the fluorescent lighting in your home. Cut your PVC pipe in half along its length. Drill holes across the entire length of the PVC pipe at equal intervals. Make the holes large enough to house the LED lights. Place all of the LED lights into the holes and firmly affix them. Make sure the polarity of the LED all have the same orientation. Now cut all of your LED leads so that they touch one another as this is required to create the requisite lighting effect. Solder three separate series of 50 LED lights by soldering their joints. Each series of LED lights must have the given resistor of 470 ohms. Now you must join your three series of LED lights together in a parallel fashion by connecting their positive and negative leads together. Join the four diodes together to create a bridge configuration rectifier and then connect the right points to the LED lights. Now plug it in to test that it is working as desired.
