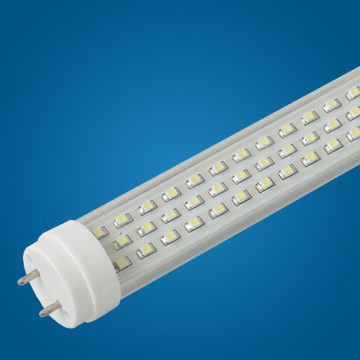

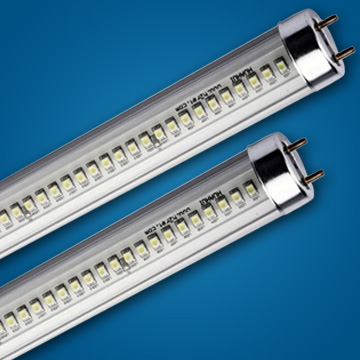

T8 LED Tubes Light

Home > Product > LED Tube Light > T8 LED Tube Light >
  • Name: T8-H T8 LED Tube Light
  • Model: T8-H
  • Voltage: 85-265V
  • Power: 8-24W
  • Color: R/G/B/W/M
  • Size: 10*1000MM
  • Lifespan: 50000H
  • Waterproof Grade: No
  • Price:

SPEC. T8-H Series

Model T8-H6 T8-H8 T8-H10 T8-H12 T8-H15 T8-H20 T8-NH22 T8-H22 T8-H28 T8-H40
Nominal length (mm) 600/26 600/26 900/26 1200/26 1200/26 1200/26 1200/26 1500/26 1500/26 2400/26
Actual length
(Excluding lamp angle)(mm)		 588 588 894 1198 1198 1198 1198 1498 1498 2394
LED Type(3528)/Qty 120 144 204 240 276 288 350 350 384 576
Power (W) 8±1 10±1 14±1 16±1 18±1 20±1 24±1 24±1 28±1 40±1
Lm transparency 806 968 1371 1613 1855 1935 2352 2352 2580 3871
milk white 645 774 1097 1290 1484 1548 1882 1882 2064 3097
light strip 710 852 1206 1419 1632 1703 2070 2070 2271 3406
LUX  H=1m 212 269 280 381 407 348 548 509 550 690
H=2m 68 98 101 132 139 123 190 184 190 260
H=3m 34 57 62 68 71 65 100 100 101 132
Beam Angel 120 120 120 120 120 120 120 120 120 120
CR(ra) ≥70 ≥70 ≥70 ≥70 ≥70 ≥70 ≥70 ≥70 ≥70 ≥70
Drive mode non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay
Packing Dimension (mm) 643*195*195 643*195*195 948*195*195 1248*195*195 1248*195*195 1248*195*195 1533*195*195 1533*195*195 1533*195*195 2500*195*195
Single weight (g) 203 223 276 360 371 390 400 420 440 820
Large packing quantity 25 25 25 25 25 25 25 25 25 25

T8-H LED light is much better than the traditional lighting products in the luminous principle. Saving energy, non pollution and long lifespan are its main advantages. T8 LED  light bulb can convert electric energy totally to light energy, which avoids wasting energy. The traditional light bulbs will produce 100 to 120 times of stroboflash every second. However, T8 LED light bulb converts ac directly into dc. The advantage of the constant-current power the LED tube light bulbs adopts is the circuit is simple in design and lower manufacturing cost.

LED light bulbs won't produce ultraviolet light, so when it used in indoor places, there won't be many mosquitoes around There is no mercury in LED tubes. T8 LED light is solid encapsulation and belongs to the cold light type, so the heat dissipation is not considerable. LED strip's body uses epoxy resin, not the traditional glass, so it is firm and not easy to damage. The color temperature range of LED tube light is wide. The color rendering index is high, so it won't produce flashing phenomenon, which is good for our eyes. T8 LED light is applied to many places, like office lighting, supermarkets, schools, and exhibition halls. With the development of the T8 LED technique, It will be used widely in many areas.

If you're interested in our products or have any questions about it, please let us know. Don't hesitate to contact us!

Knowledge

The drive power of 12V LED tube light

The drive power is a key element of 12V LED tube light; which is also one important factor for choosing or designing the LED tube light. You select or design appropriate LED drive power should consider the characteristics and quantity of LED, lighting installation sites, the location of the tube light in the power grid, electrical safety, constant current driver, noise immunity and EMI（Electro-Magnetic Interference）. As the current source driver of the LED tube light is low-voltage, it is not like a normal incandescent bulbs that can be directly connected to 220V of AC power, we must design the power supply and control circuit to drive LED. In addition, the electrical connection of the LED module is also an important component of the electrical system, we should give full consideration to the safety of the 12V LED tube light, we should use a standard connector, full insulation, protection against electric shock, etc. We usually use the 12VDC as the 12V LED tube light’ power supply, it is safe and reliable. It can be applied to a wide range area, it can be used completely without power, and as long as you have 12 VDC power source, our company adopts the advanced drive power source technology to ensure the safety and use of lamps life.
