| SPEC. | T5 LED Tube Light |
|||||
| Model | T5-KS4 | T5-KS8 | T5-KS12 | T5-KS16 | T5-KS20 | |
| Nominal length (mm) | 300/16 | 600/16 | 900/16 | 1200/16 | 1500/16 | |
| Actual length (Excluding lamp angle)(mm) |
288 | 549 | 849 | 1149 | 1449 | |
| LED Type(3528)/Qty | 60 | 120 | 180 | 240 | 300 | |
| Power (W) | 4±1 | 8±1 | 12±1 | 16±1 | 20±1 | |
| Lm | transparency | 403 | 806 | 1210 | 1613 | 2016 |
| milk white | 323 | 645 | 968 | 1290 | 1613 | |
| light strip | -- | -- | -- | -- | -- | |
| LUX | H=1m | 98 | 202 | 278 | 334 | 385 |
| H=2m | 27 | 65 | 94 | 118 | 143 | |
| H=3m | 14 | 33 | 48 | 63 | 78 | |
| Beam Angel | 180 | 180 | 180 | 180 | 180 | |
| CR(ra) | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | |
| Drive mode | integration | integration | integration | integration |
integration | |
| Packing Dimension (mm) | 353*235*175 | 623*235*175 | 913*235*175 | 1000*235*175 | 1515*235*175 | |
| Single weight (g) | 123 | 179 | 236 | 306 | 370 | |
| Large packing quantity | 25 | 25 | 25 | 25 | 25 | |

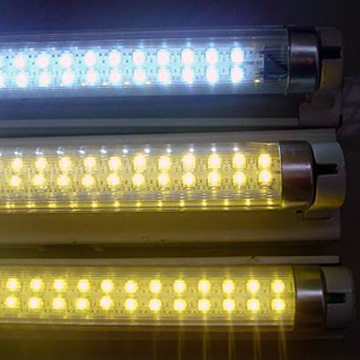

The T5-KS SMD LED light from our company does very well in energy saving. The white LED tube light is one tenth of the traditional filament lamp in energy consumption. Its service life can reach 50,000 or more hours and the lifespan is far longer than the traditional lamps. The service life will not be affected even if you start or shut off frequently. T5-KS SMD LED lights belong to the cold light type, so it is very convenient in transportation and installation. SMD LED light T5-KS can be installed in the miniature and sealing devices without worrying about vibration or heat dissipation. There is no mercury, lead or other harmful substances in it. The assemblies of T5-KS SMD LED light can be taken apart very easily. There is no ultraviolet or infrared spectrum which does not produce heat, so it is very environmentally friendly. Compared with the traditional fluorescent lamps, LED light T5 combines with the computer technology, network communication technology, image processing technology successfully.
Applications of SMD LED Tube T5-KS:
SMD LED light T5-KS has a wide range of applications. It can be used as indoor and/or outdoor lighting, like office buildings, shopping malls, supermarkets, schools, hospitals, hotels, parking lots, and municipal engineering facilities. The LED technology is developing constantly and the luminous efficiency is having amazing breakthroughs.
