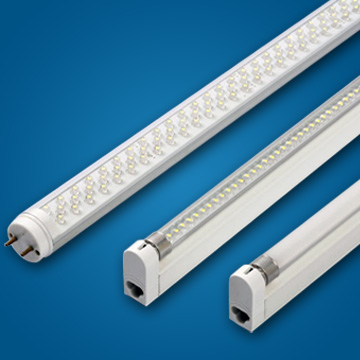

T5 LED Tube

Home > Product > LED Tube Light > T5 LED Tube Light >
  • Name: T52061C T5 LED Tube Light
  • Model: T52061C
  • Power: 8W
  • Input Voltage (AC): 85-265V / 50-60Hz
  • Lumens: 640-720lm
  • Color Temperature: 2700K-7000K
  • Beam angle: 120°
  • Dimensions: 600MM
  • LED quantity: 72SMD
  • Lifespan: > 50,000 Hours

SPEC. T5-LED Tube Light
Model T5-S4 T5-S8 T5-S12 T5-S16 T5-S20
Nominal length (mm) 300/16 600/16 900/16 1200/16 1500/16
Actual length
(Excluding lamp angle)(mm)		 288 549 849 1149 1449
LED Type(3528)/Qty 60 120 180 240 300
Power (W) 4±1 8±1 12±1 16±1 20±1

Lm		 transparency 403 806 1210 1613 2016
milk white 323 645 968 1290 1613
light strip -- -- -- -- --

LUX		 H=1m 98 202 278 334 385
H=2m 27 65 94 118 143
H=3m 14 33 48 63 78
Beam Angel 180 180 180 180 180
CR(ra) ≥70 ≥70 ≥70 ≥70 ≥70
Drive mode outlay outlay outlay outlay outlay
Packing Dimension (mm) 353*235*175 623*235*175 913*235*175 1211*235*175 1515*235*175
Single weight (g) 123 179 236 306 370
Large packing quantity 25 25 25 25 25

Our T5-S LED light is a new energy-saving and environmentally friendly lighting product. There is not a starter or ballast resistor in it, so its luminous efficiency is higher. The luminous efficiency of a traditional tube light is about 55-80lm/W, while the LED luminous efficiency is over the 100lm/W. Its viewing angle is 180 degrees. The Color rendering index is above 70. Traditional fluorescent lamps contains a lot of mercury vapor, but there is no mercury or lead in the T5-S LED tubes.

The luminous flux is fully guaranteed by the unique structural design. The drive current of every chip LED is limited in the optimum operating current range to ensure the long life of LED chip. The cooling effect is perfect because of the structural optimization design. With the development of the T5-S LED tube light technique, it will be used widely in many fields.

Applications of T5-S LED tubes:

For use in factory assembly lines, supermarket and shopping malls, schools, offices, hospitals, municipal buildings and so on.

T5-S LED light is flicker free which is good for relieving visual fatigue and eyesight. T5-S LED tube light won't produce noise, so It is the best choice for the places like precision electronic instruments, and also it is very suitable for libraries and offices.

If you're interested in our products or have any questions about it, please let us know. Don't hesitate to contact us!

Knowledge

LED Tube Light Price

LED Tube Light Price for now much is still much higher than the traditional fluorescent lamps, and this is the main reason that many ordinary families can not afford it. Considering demands from the entire international and domestic LED tube light markets: LED tube light salling market is currently in Europe and America, because people in Europe and the United States are always paying more attention to the environment protection and energy, they would rather spend more money for green energy and environment protection. Thus the price of the LED tube light they will not be considered too much, while the most important consideration is the energy saving properties of the LED tube light products. But from the point of view nowadays, in the LED tube light's current market the price of LED tube light is falling, and the quality is more stable and reliable, more environmentally friendly and energy-saving. With the fast gradual growth and development of LED tube light market, we are sure that the domestic LED tube light consumer market will grow and develop too, the price of the LED tube light will certainly drop. And all of these will make the LED Tube Light Price become more suitable for consumers fromordinary families. In short, the energy-saving and green and healthy concept in modern society will provide strong power for the boom of the LED tube light market and the plebification of the LED tube light. We believe that one day LED Tube Light Price will be accepted by tens of thousands of ordinary families, our environmental friendly and energy-saving life will have more great and fast development with the supported of LED tube light products.
