LED Tube T10

  • Name: SQ-A/B-B045-081 T10 LED Tube Light
  • Power: 24W
  • Input Voltage (AC): 85-265V / 50-60Hz
  • Lumens: 2030lm
  • Color Temperature: 2700K-7000K
  • Beam angle: 120°
  • Dimensions: 1500MM
  • LED quantity: 240SMD
  • Lifespan: > 50,000 Hours

SPEC. T10-N Series
Model T10-N8 T10-N10 T10-N15 T10-N20 T10-N22 T10-N28 T10-N40
Nominal length (mm) 600/32 900/32 1200/32 1200/32 1500/32 1500/32 2400/32
Actual length
(Excluding lamp angle)(mm)
588 894 1198 1198 1498 1498 2394
LED Type(3528)/Qty 144 204 276 288 350 384 576
Power (W) 10±1 14±1 19±1 20±1 24±1 28±1 40±1
Lm transparency 968 1371 1855 1935 2352 2580 3871
milk white 774 1097 1484 1548 1882 2064 3097
LUX H=1m 269 280 407 348 509 550 690
H=2m 98 101 139 123 184 190 260
H=3m 57 62 71 65 100 101 132
Beam Angel 180 180 180 180 180 180 180
CR(ra) ≥70 ≥70 ≥70 ≥70 ≥70 ≥70 ≥70
Drive mode non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay non-isolated,inlay
Packing Dimension (mm) 643*195*195 948*195*195 1248*195*195 1248*195*196 1533*195*195 1533*195*195 2500*195*195
Single weight (g) 224 430 440 450 530 540 921
Large packing quantity 25 25 25 25 25 25 25

T10-N LED tube light has incredible quality and steady performance. It can do a good job in energy-saving and produces high brightness. It has a wide voltage range, from 85V-265V AC to 50-60Hz. So it can work normally without stroboscopic.

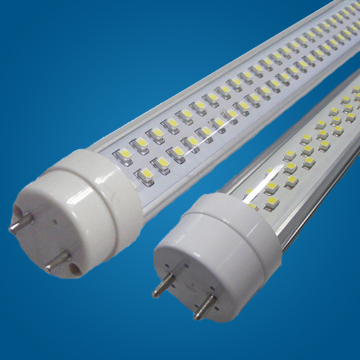

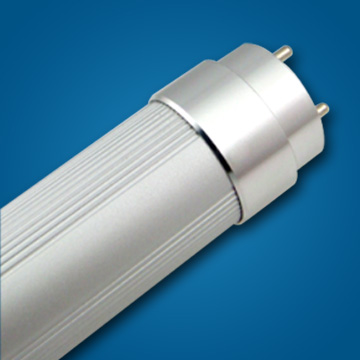

LED tube T10-N is composed of small but super LED brightness, high light transmittance PC cover, heat dissipation aluminum alloy and power supply. SMD LED beads are commonly used in the type of 3528 and 5050. There are two kinds of LED tube T10-N shells: the transparent PC shell. With high light transmittance, the LED heads can be seen through the shell. The other is a translucent grind arenaceous shell which can make the light softer and comfortable. T10-N LED tube light uses a built-in power supply. LED tube T10-N can be made into red, yellow, blue, green, white, and warm white colors. LED tube T10-N can be used in many sectors, like large factories, production workshops, and supermarkets for indoor lighting. LED tube T10-N lasts more than 50,000 hours, and save ssignificant amount electricity.

If you're interested in our products or have any questions about it, please let us know. Don't hesitate to contact us!


How to buy LED tube light

With the continuous development of LED tube light technology, LED tube lighting has already begun to enter people's lives, when we buy led tube light, it should be select from the following: First of all, you should buy LED tube light which is constant current, LED tube light is influenced by the environment for the characteristics of the semiconductor, If the temperature rise, LED's current will increase, and the voltage become high, LED current will still increase. If the LED tube light' work current is higher than the rated current Long-term, it will greatly reduce the survival of LED life. Secondly, you should buy the high power efficient tube light. This parameter is particularly important, the LED tube light with low efficiency means that a large portion of input power is converted into heat; if it is installed inside the tube it will produce a very high temperature, and the service life of all electronic components will be shortened with the rise in temperature. So the power efficiency is the most fundamental factor which determines the lifespan of the LED tube light. Finally, you had better buy LED tube light by CE certification, now the LED tube lights for exporting to abroad are generally required to achieve CE certification, so the quality of the LED tube light can be further guaranteed that have the CE certification.
