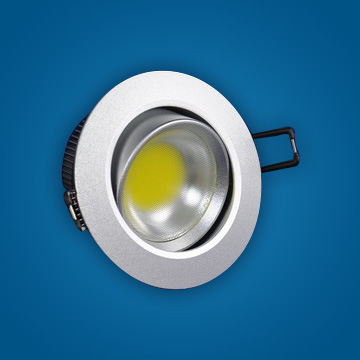

  • Name: COB Down Light
  • Item No: GC-D4L
  • Power: 10W
  • Input Voltage: AC85-265V
  • CCT: 3000K/4500K/6000K
  • CRI: 70-85
  • Luminous Flux: 700-800LM
  • Beam Angle: 80°
  • Size: ¢108*68MM
  • Cut-off Hole size: ¢90MM
  • Weight: 360G

Features of 10w COB LED Ceiling Light:

1. Circuit board is embedded perfectly with the cover.

2. No infrared light or ultra-violet light, harmless to human body.

3. Adopt SMT mini power LED. Unique circling arrangement makes better illumination effect and longer lifespan than before.

4. Identical dimension to traditional ceiling light can be installed in the ordinary compatible socket.

5. High light transmittance, uniform lighting, and no glare make the light bright and beautiful

6. International material-choosing standards, top encapsuling process and soft lighting offer you and your family a warm light atmosphere.

7. With CE, RoHS certification.

8. With multiple colors for choosing, energy-saving and environmental-friendly.

9. Dustproof, pressure resistance, and high temperature resistance.

Installation Information of Our 10w COB LED Ceiling Light:

Open the hole according to the products’ cut-off hole size, and please operate according to the exact hole size.

1. Please follow the instruction and obey the safety codes to connect wires and the end of lamps.

2. Put the spring board on both sides to be vertical then put it into the hole, please confirm the lamps coincide with the cut-off hole size.

3. Put down the spring buckles after confirming the cut-off hole size and the right wires-connection, then please confirm the installation is stable


10w COB LED ceiling light
