| Model | GL-530-A | |||||||
| Color | Red | Yellow | Blue | Green | White | Warm White | RGB | |
| LED Parameter | LED Model | SMD5050 | SMD5050 | SMD5050 | SMD5050 | SMD5050 | SMD5050 | SMD5050 |
| Light Number | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Luminance | 700-800 | 700-850 | 600-650 | 2500-3000 | 3000-4000 | 3000-3500 | * | |
| Angle | 120 | 120 | 120 | 120 | 120 | 120 | 120 | |
| Sheet Material | FPC | FPC | FPC | FPC | FPC | FPC | FPC | |
| Power | 7.2W | 7.2W | 7.2W | 7.2W | 7.2W | 7.2W | 7.2W | |
| Size | 10*1000MM | 10*1000MM | 10*1000MM | 10*1000MM | 10*1000MM | 10*1000MM | 10*1000MM | |
| Working Voltage | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V | DC12V | |
| Waterproof | silicone tube IP63 | silicone tube IP63 | silicone tube IP63 | silicone tube IP63 | silicone tube IP63 | silicone tube IP63 | silicone tube IP63 | |
| Outlet Capacity | 15CM | 15CM | 15CM | 15CM | 15CM | 15CM | 15CM | |
12V LED strips are very popular in current markets. More and more people are willing to accept this new style lighting tool due to the following distinguished features:

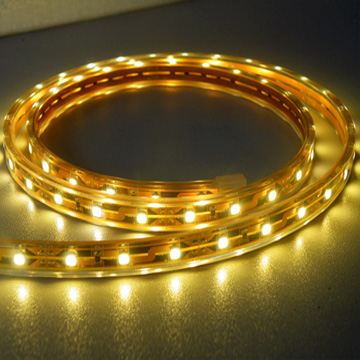

GL-530-A SMD 5050 LED strip is basically a small chip sealed in the epoxy resin inside, so it is very small, very light. The power consumption of the GL-530-A LED strip is lower, because the working voltage of general LED only needs 2 - 3.6 V and the working current is 0.02-0.03 A, which means it power consumption can be less than 0.1 W. What's more, the service life of the GL-530-A LED strip is longer than other traditional lights. It can arrive at 35,000 hours with appropriate electric current and voltage.
LED adopts cold luminous technology, which makes its heat productivity lower than normal lights. And this GL-530-A 12V LED strip is free of contamination due to its non-toxic materials, so it will not cause any hydrargyrum pollution. Furthermore, all LED strips can be recycled.
The GL-530-A 12V LED strip adopts super flexible PCB board and bright tri-chip as it luminous body, so its brightness is higher, and the beaming angle can reach 140°. More so, special waterproof craft can not only make LED strip light completely waterproof, but also keeps the ribbon flexible and easy to curve.
Every three LED strip lights can be formed to make a loop, so you can cut down any of the above tangent without doing any damages to other parts, also the length is adjustable according to the customer requirements.
